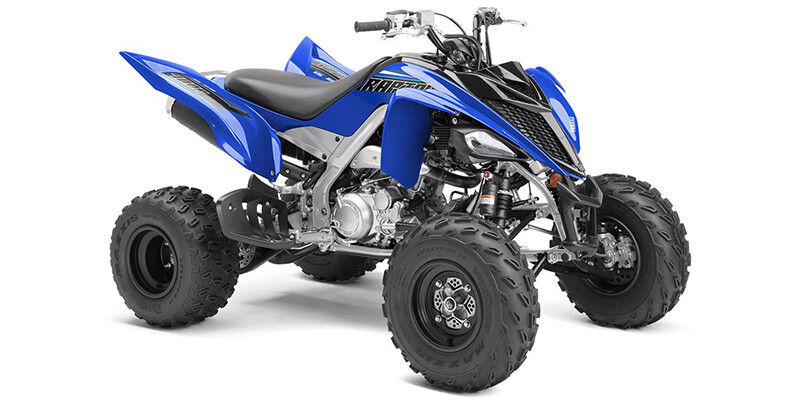

Raptor 700R

Raptor 700R

Description

Aggressive Style

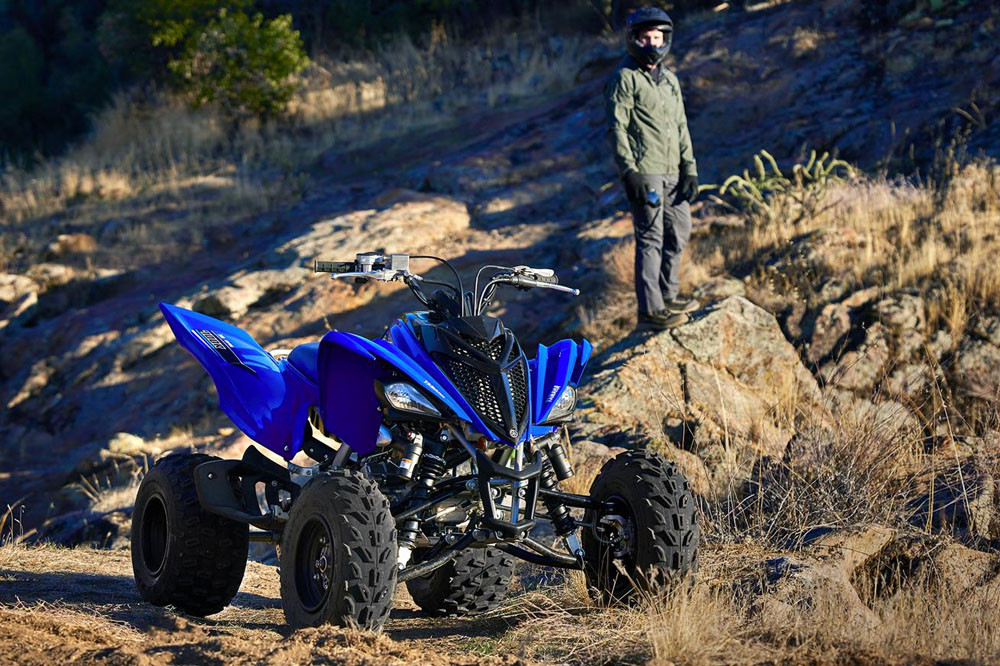

Aggressive styling makes the Raptor 700R look as menacing as it really is. The mighty Raptor 700R is ready to go whether the destination is the dunes, the trails or the track.

Big-Bore Power

Powered by our most potent 686cc, liquid-cooled, fuel-injected Raptor engine ever, this big bore sport ATV produces big torque right off idle, transitioning into a fat mid-range, and monstrous top-end.

Advanced Chassis

Big power and lightweight, a combination that makes any ATV rider take notice, come standard on the Raptor 700R. With a hybrid steel aluminum frame, Controlled-Fill aluminum sub-frame and cast aluminum swingarm, this combination produces a super-strong structure and the lightest ATV in its class.

Rider-Friendly Features

A thick comfortable seat provides excellent comfort while the dual counterbalancers, electric starting and reverse keep things nice and civilized when needed, but when it comes time to pull the trigger, the big bore Raptor 700R stands tall.

Advanced Suspension

The YFZ-inspired handling of the Raptor 700R is incredible to experience while blasting through the woods. Thanks to the 9.1 inches of front travel and 10.1 inches out back, the trail bumps smooth out while the rider keeps things under control. With the combination of power, solid handling and a great suspension, this machine has to be experienced to be fully appreciated.

Specifications

  • ENGINE
    add remove
    • Engine Type
      686cc liquid-cooled SOHC 4-stroke; 4 valves
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Cooling
      Liquid
    • Valve Configuration
      SOHC
    • Bore (in)
      4.02
    • Stroke (in)
      3.31
    • Displacement (cc)
      686
    • Carburetion Type
      Fuel Injected
    • Parental Controls
      Not Available
    • Valves Per Cylinder
      4
    • Fuel Injector Size (mm)
      44
    • Compression Ratio
      10.0:1
    • Fuel Delivery
      Yamaha Fuel Injection (YFI), 44mm
    • Transmission
      5-speed w/reverse; wet multiplate clutch
    • Ignition
      TCI: Transistor Controlled Ignition
    • Starting System
      Electric
    • Final Drive
      X-ring chain; 2WD
  • TRANSMISSION
    add remove
    • Transmission Type
      Manual
    • Number Of Speeds
      5
    • Hi / Low Range
      No
    • Primary Drive (Rear Wheel)
      Chain
    • Reverse
      Yes
  • DRIVE LINE
    add remove
    • Driveline Type
      4X2
    • Number Of Driveline Modes
      1
    • Rear Unlocking Differential
      No
    • Rear Solid Axle
      Yes
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      45.5
    • Height (in)
      43.9
    • Wheelbase (in)
      50.4
    • Ground Clearance (in)
      9.5
    • Fuel Capacity (gal)
      2.9
    • Engine Displacement to Weight (cc)
      1.63
    • Wet Weight (lbs)
      422
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double Wishbone
    • Front Travel (in)
      9.1
    • Front Adjustable Fork Pre-Load
      Yes
    • Front Adjustable Rebound Damping
      Yes
    • Front Central Suspension Strut
      No
    • Steering Damper
      No
    • Rear Suspension Type
      Swing Arm
    • Rear Travel (in)
      10.1
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Rear Adjustable Rebound Damping
      Yes
    • Number Rear Shock Absorbers
      1
    • Rear Suspension Material
      Aluminum
  • WHEELS & TIRES
    add remove
    • Wheels Composition
      Aluminum
    • Tube / Tubeless
      Tubeless
    • Front Tire Diameter (in)
      22
    • Rear Tire Diameter (in)
      20
    • Front Tire (Full Spec)
      Maxxis® AT 22 X 7-10
    • Rear Tire (Full Spec)
      Maxxis® AT 20 X 10-9
    • Tire Chains
      Not Available
    • Spare Tire
      Not Available
  • BRAKES
    add remove
    • Front Brake Type
      Dual Hydraulic Disc
    • Rear Brake Type
      Hydraulic Disc
  • Color options
    add remove
    • Team Yamaha Blue
