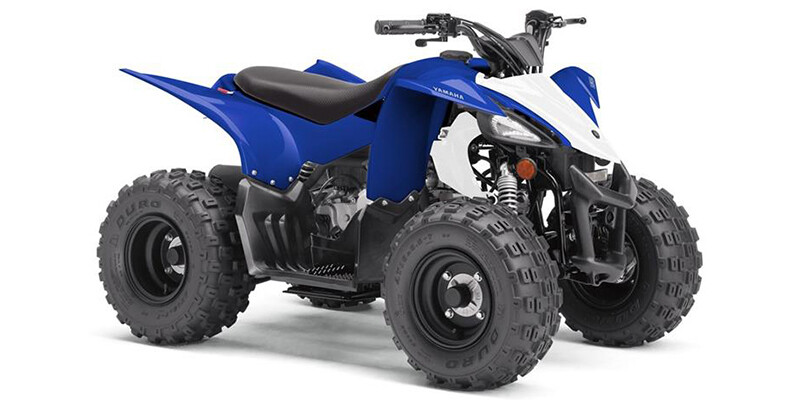

YFZ 50

YFZ 50

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Cooling
      Air
    • Valve Configuration
      SOHC
    • Bore (in)
      1.54
    • Stroke (in)
      1.63
    • Displacement (cc)
      49
    • Carburetion Type
      Carburetor
    • Parental Controls
      Standard
    • Valves Per Cylinder
      2
    • Speed Governor
      Yes
    • Compression Ratio
      8.5:1
  • TRANSMISSION
    add remove
    • Transmission Type
      Continuously Variable (CVT)
    • Number Of Speeds
      1
    • Hi / Low Range
      No
    • Primary Drive (Rear Wheel)
      Chain
    • Reverse
      No
  • DRIVE LINE
    add remove
    • Driveline Type
      4X2
    • Number Of Driveline Modes
      1
    • Rear Unlocking Differential
      No
    • Rear Solid Axle
      Yes
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      32.3
    • Height (in)
      30.3
    • Wheelbase (in)
      32.7
    • Ground Clearance (in)
      3.5
    • Fuel Capacity (gal)
      1.5
    • Engine Displacement to Weight (cc)
      0.22
    • Wet Weight (lbs)
      220
  • SUSPENSION
    add remove
    • Front Suspension Type
      A-Arm
    • Front Travel (in)
      2.4
    • Front Adjustable Fork Pre-Load
      No
    • Front Adjustable Rebound Damping
      No
    • Front Central Suspension Strut
      No
    • Steering Damper
      No
    • Rear Suspension Type
      Swing Arm
    • Rear Travel (in)
      2
    • Rear Adjustable Shock / Spring Pre-Load
      No
    • Rear Adjustable Rebound Damping
      No
    • Number Rear Shock Absorbers
      1
  • WHEELS & TIRES
    add remove
    • Wheels Composition
      Steel
    • Tube / Tubeless
      Tubeless
    • Front Tire Diameter (in)
      16
    • Rear Tire Diameter (in)
      16
    • Front Tire (Full Spec)
      Duro® 16 X 6.5-7
    • Rear Tire (Full Spec)
      Duro® 16 X 7-7
    • Tire Chains
      Not Available
    • Spare Tire
      Not Available
  • BRAKES
    add remove
    • Front Brake Type
      Dual Sealed Drum
    • Rear Brake Type
      Sealed Drum
  • Color options
    add remove
    • Team Yamaha Blue
    • White
