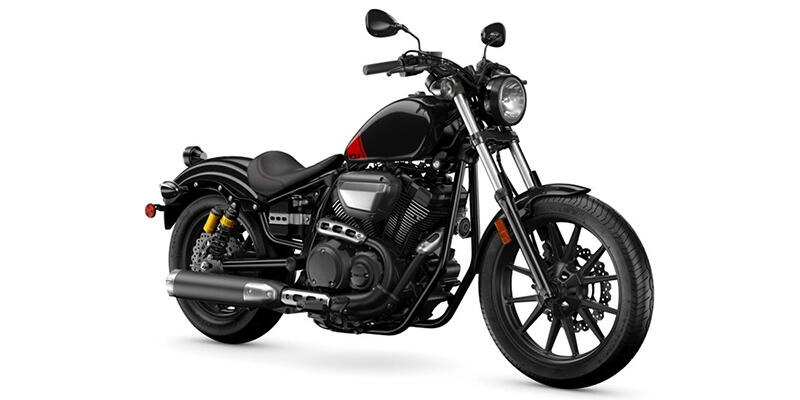

Bolt R-Spec

Bolt R-Spec

Request details

Description

Featuring a torquey V‑Twin engine, this performance bobber combines old‑school soul and modern form.

Specifications

  • ENGINE
    add remove
    • Engine Type
      V Twin
    • Cylinders
      2
    • Engine Stroke
      4-Stroke
    • Cooling
      Air
    • Valves
      8
    • Valves Per Cylinder
      4
    • Valve Configuration
      SOHC
    • Bore (in)
      3.35
    • Stroke (in)
      3.27
    • Displacement (cc)
      942
    • Fuel Injector
      Yes
    • Carburetor
      No
    • Carburetion Type
      Fuel Injected
    • Turbocharged
      No
    • Supercharged
      No
    • US Miles Per Gallon (Combined)
      51
    • Compression ratio
      9.0:1
  • TRANSMISSION
    add remove
    • Transmission Type
      Manual
    • Number Of Speeds
      5
    • Primary Drive (Rear Wheel)
      Belt
    • Reverse
      No
  • TECHNICAL SPECIFICATIONS
    add remove
    • Length (in)
      90.2
    • Width (in)
      37.2
    • Height (in)
      44.1
    • Wheelbase (in)
      61.8
    • Ground Clearance (in)
      5.1
    • Fuel Capacity (gal)
      3.4
    • Engine Displacement to Weight (cc)
      1.74
    • Wet Weight (lbs)
      542
  • SUSPENSION
    add remove
    • Front Suspension Type
      Telescopic Fork
    • Front Suspension Size (in)
      1.6
    • Front Travel (in)
      4.7
    • Front Adjustable Fork Pre-Load
      No
    • Front Adjustable Rebound Damping
      No
    • Front Central Suspension Strut
      No
    • Steering Damper
      No
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Rear Travel (in)
      2.8
    • Rear Adjustable Shock / Spring Pre-Load
      No
    • Rear Adjustable Rebound Damping
      No
    • Number Rear Shock Absorbers
      2
    • Air Adjustable
      No
  • WHEELS & TIRES
    add remove
    • Wheels Composition
      Aluminum
    • Tube / Tubeless
      Tubeless
    • Tires
      Standard
    • Tire Brand
      Bridgestone®
    • Front Tire (Full Spec)
      100/90 R19 57H Bridgestone® EXEDRA G721 F
  • BRAKES
    add remove
    • Front Brake Type
      Hydraulic Disc
    • Front Brake Diameter (in)
      11.7
    • Rear Brake Type
      Hydraulic Disc
    • Rear Brake Diameter (in)
      11.7
    • Regenerative Braking
      Not Available
    • Regenerative Deceleration
      Not Available
  • SEATS
    add remove
    • Seat Type
      One-Piece
    • Seat Location
      Driver
    • Seat Material
      Vinyl
    • Seat Specifications
      Standard
    • Seat Height (in)
      27.2
    • Number Of Seats
      1
    • Detachable Passenger Seat
      Not Available
    • Seat Backrest
      Optional
    • Grab Rail or Strap
      Not Available
  • Color options
    add remove
    • Raven
