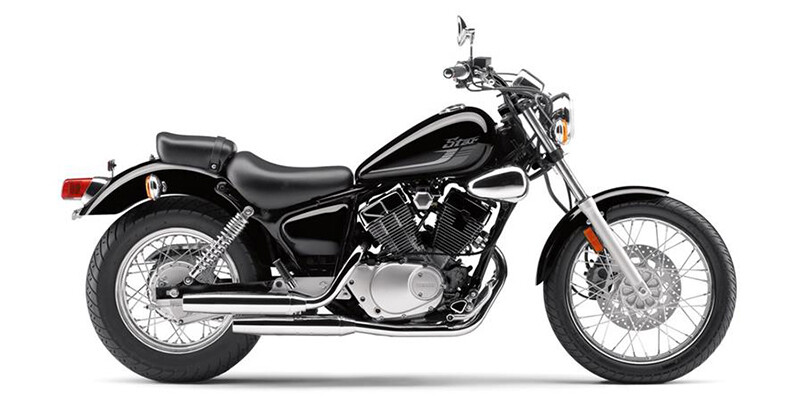

V Star 250

V Star 250

V Star 250

Description

TOP FEATURES

  1. Compact Custom
    Light weight and a seat just 27 inches from the pavement make the V Star 250® a great trainer as well as a great choice for riders who appreciate the fun that comes in small packages.
  2. Big Bike Style
    Dual exhausts, plenty of quality chrome and typical Star attention to detail—this is one sharp little cruiser.
  3. Strong Brakes
    Front disc brake provides highly controllable stopping power.
  4. Unique V- twin Performance
    The V Star 250 is the only V-twin in its class.
  5. Ultra- Efficient Engine
    Estimated 78 mpg* means almost 200 miles between fill-ups.

FEATURES & BENEFITS

ENGINE

Uniquely Potent V-twin
Air-cooled, 249cc, 60-degree V-twin engine with a long 66mm stroke produces plenty of bottom-end torque and smooth roll-on power. And it’s the only V-twin engine in its class, too.

Smooth Running
Single 26mm Mikuni® downdraft carburetor ensures optimal fuel/air mixing and delivery with superb throttle response.

Flexible Gearing
Widely geared five-speed transmission makes the most of V Star 250’s powerband.

Electric Start
Easy, dependable electric starting.

Classic Exhaust Layout
Beautiful dual chrome exhaust pipes let the engine breathe and put out that classic V-twin rumble.

Low Maintenance Motor
Automatic cam chain tensioner virtually eliminates maintenance and helps extend engine life.

CHASSIS/SUSPENSION

Agile Chassis
58.7-inch wheelbase creates a long, low package with great handling and maneuverability.

Strong Brakes
282mm single front disc brake and a rear drum brake provide plenty of stopping power.

Low Seat Height
Plush and low-stepped saddle keeps the rider sitting low and lets almost everybody flatfoot the pavement.

Plush Suspension
Telescopic front fork with 5.5 inches of travel provides a nice, smooth ride. Twin rear shocks feature 3.9 inches of travel and adjustable
spring preload for versatility under various loads.

ADDITIONAL FEATURES

Open Riding Position
A custom style handlebar gives the V Star 250 a modern look and comfortable riding position.

Big Bike Style
Extensive chrome details accent engine and side covers for incomparable “big bike” fit and finish.

Generous Fuel Range
Stylishly sculpted teardrop fuel tank features 2.5-gallon capacity for excellent cruising range.

Forward Mount Controls
Forward-set foot pegs enhance rider comfort by creating added legroom.

Stylish Fenders
Wide rear fender and front and rear wire-spoked wheels add the perfect classic, retro touch to this stylish package.

Specifications

  • ENGINE
    add remove
    • Engine Type
      V Twin
    • Cylinders
      2
    • Engine Stroke
      4-Stroke
    • Cooling
      Air
    • Valves
      4
    • Valves Per Cylinder
      2
    • Valve Configuration
      SOHC
    • Bore (in)
      1.93
    • Stroke (in)
      2.6
    • Displacement (cc)
      249
    • Carburetion Brand
      Mikuni
    • Fuel Injector
      No
    • Carburetor
      Yes
    • Number Of Carburetors
      1
    • Carburetion Type
      Carburetor
    • Turbocharged
      No
    • Supercharged
      No
    • US Miles Per Gallon (Combined)
      78
    • Bore x Stroke
      49.0mm x 66.0mm
    • Compression ratio
      10.0:1
    • Fuel Delivery
      Mikuni® 26mm carburetor
    • Transmission
      5-speed; multiplate wet clutch
    • Final Drive
      Chain
  • TRANSMISSION
    add remove
    • Transmission Type
      Manual
    • Number Of Speeds
      5
    • Primary Drive (Rear Wheel)
      Chain
    • Gear Ratio (1)
      2.643
    • Gear Ratio (2)
      1.684
    • Gear Ratio (3)
      1.261
    • Gear Ratio (4)
      1
    • Gear Ratio (5)
      0.821
    • Reverse
      No
  • TECHNICAL SPECIFICATIONS
    add remove
    • Length (in)
      86.2
    • Width (in)
      28
    • Height (in)
      41.7
    • Wheelbase (in)
      58.7
    • Ground Clearance (in)
      5.7
    • Fuel Capacity (gal)
      2.5
    • Engine Displacement to Weight (cc)
      0.76
    • Turning Radius (ft)
      9.2
    • Wet Weight (lbs)
      326
  • SUSPENSION
    add remove
    • Front Suspension Type
      Telescopic Fork
    • Front Suspension Size (in)
      1.3
    • Front Travel (in)
      5.5
    • Front Adjustable Fork Pre-Load
      No
    • Front Adjustable Rebound Damping
      No
    • Front Central Suspension Strut
      No
    • Steering Damper
      No
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Rear Travel (in)
      3.9
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Rear Adjustable Rebound Damping
      No
    • Number Rear Shock Absorbers
      2
    • Air Adjustable
      No
  • WHEELS & TIRES
    add remove
    • Wheels Composition
      Steel
    • Tube / Tubeless
      Tubed
    • Tires
      Standard
    • Front Tire (Full Spec)
      3 X 18
    • Front Wheel Width (in)
      1.6
  • BRAKES
    add remove
    • Front Brake Type
      Hydraulic Disc
    • Front Brake Diameter (in)
      11.1
    • Rear Brake Type
      Drum
    • Rear Brake Diameter (in)
      5.1
    • Regenerative Braking
      Not Available
    • Regenerative Deceleration
      Not Available
  • SEATS
    add remove
    • Seat Type
      Two-Piece
    • Seat Location
      Driver and Passenger
    • Seat Material
      Vinyl
    • Seat Specifications
      Standard
    • Seat Height (in)
      27
    • Number Of Seats
      2
    • Detachable Passenger Seat
      Standard
    • Seat Backrest
      Optional
    • Grab Rail or Strap
      Standard
  • Color options
    add remove
    • Raven
