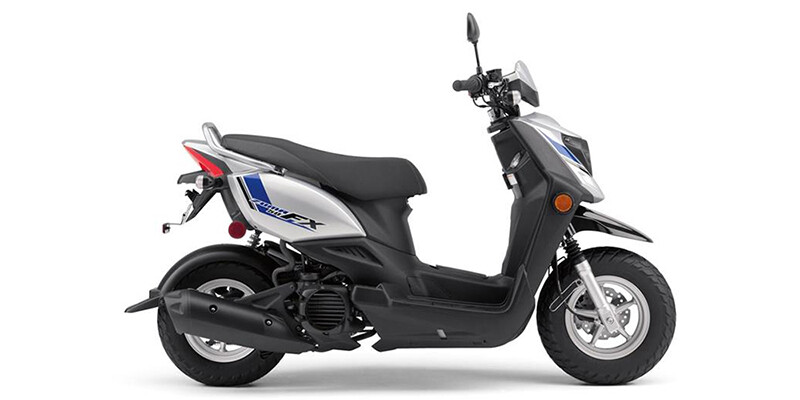

Zuma 50FX

Specifications

• ENGINE

  add remove
  • Engine Type
    Single-Cylinder
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    3
  • Valves Per Cylinder
    3
  • Valve Configuration
    SOHC
  • Bore (in)
    1.5
  • Stroke (in)
    1.72
  • Displacement (cc)
    49
  • Fuel Injector
    Yes
  • Carburetor
    No
  • Carburetion Type
    Fuel Injected
  • Turbocharged
    No
  • Supercharged
    No
  • US Miles Per Gallon (Combined)
    132
  • Compression ratio
    12.0:1
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Primary Drive (Rear Wheel)
    Belt
  • Reverse
    No
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (in)
    73
  • Width (in)
    28.7
  • Height (in)
    43.1
  • Wheelbase (in)
    50.4
  • Ground Clearance (in)
    4.5
  • Fuel Capacity (gal)
    1.2
  • Engine Displacement to Weight (cc)
    0.24
  • Wet Weight (lbs)
    201
• SUSPENSION

  add remove
  • Front Suspension Type
    Telescopic Fork
  • Front Travel (in)
    2.3
  • Front Adjustable Fork Pre-Load
    No
  • Front Adjustable Rebound Damping
    No
  • Front Central Suspension Strut
    No
  • Steering Damper
    No
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Travel (in)
    2.2
  • Rear Adjustable Shock / Spring Pre-Load
    No
  • Rear Adjustable Rebound Damping
    No
  • Number Rear Shock Absorbers
    1
  • Air Adjustable
    No
• WHEELS & TIRES

  add remove
  • Wheels Composition
    Aluminum
  • Tube / Tubeless
    Tubeless
  • Tires
    Standard
  • Front Tire (Full Spec)
    120/90 R10
• BRAKES

  add remove
  • Front Brake Type
    Hydraulic Disc
  • Front Brake Diameter (in)
    7.1
  • Rear Brake Type
    Drum
  • Regenerative Braking
    Not Available
  • Regenerative Deceleration
    Not Available
• SEATS

  add remove
  • Seat Type
    One-Piece
  • Seat Location
    Driver and Passenger
  • Seat Material
    Vinyl
  • Seat Specifications
    Standard
  • Seat Height (in)
    30.3
  • Number Of Seats
    2
  • Detachable Passenger Seat
    Not Available
  • Seat Backrest
    Not Available
  • Grab Rail or Strap
    Standard
• Color options

  add remove
  • Quick Silver
  • Heat Red
