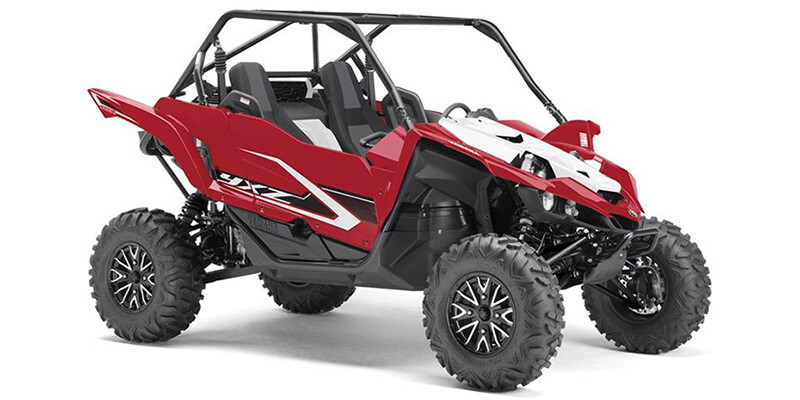

YXZ1000R

YXZ1000R

Pure SPort. All Performance

Description

The most focused, pure sport Side‑by‑Side that brings a superior level of high‑performance to every ride, from open deserts to tight woods.

TOP FEATURES

The Ultimate Pure Sport SxS

The YXZ1000R™ is the most focused, high-performance side-by-side in the world. Every system on board ensures the YXZ® brings this level of performance to every ride, no matter the terrain, across dunes and deserts, through tight woods and muddy trails.

Exclusive Engine and Transmission

Unique, powerful and just as exclusive as when it broke cover in 2015, the YXZ1000R features a high-revving, high-output inline-triple engine mated to a sequential-shift five-speed gearbox. The result is a Pure Sport driving experience unmatched by anything on the market.

High-Spec Chassis

Big engines make headlines, but it’s the chassis that does the real work. The YXZ1000R flatters its driver with one of the most agile, adjustable and capable side-by-side chassis designs ever seen in a production side-by-side.

Driver-Focused Ergonomics

Comfort is control when driving hard, and the YXZ1000R is built around this concept. The driver and passenger are kept low in the chassis, with exceptional visibility. The cabin offers roomy, high-back seats with plenty of adjustability for the driver.

Yamaha Engineering

Not only does the YXZ1000R come standard with Yamaha’s famous reputation for reliability, it’s also assembled in the USA and engineered with a full range of factory accessory options, so you can customize a YXZ1000R to your needs and know it will meet and exceed your expectations for years to come.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Longitudinal In-Line
    • Cylinders
      3
    • Engine Stroke
      4-Stroke
    • Cooling
      Liquid
    • Valve Configuration
      DOHC
    • Bore (in)
      3.15
    • Stroke (in)
      2.61
    • Displacement (cc)
      998
    • Carburetion Brand
      Mikuni
    • Number Of Carburetors
      0
    • Carburetion Type
      Fuel Injected
    • Valves
      12
    • Valves Per Cylinder
      4
    • Bore x Stroke
      80.0mm x 66.2mm
    • Compression ratio
      11.3:1
    • Fuel Delivery
      Yamaha Fuel Injection (YFI); three 41mm Mikuni® throttle bodies
    • Transmission
      Manual foot clutch; 5-speed sequential with reverse
    • Final Drive
      On-Command; 3-way locking differential; selectable 2WD and 4WD with diff lock; shaft drive
  • TRANSMISSION
    add remove
    • Transmission Type
      Manual
    • Primary Drive (Rear Wheel)
      Shaft
    • Reverse
      Yes
    • Overdrive
      No
    • Hi / Low Range
      No
    • Primary Drive (Front Wheel)
      Shaft
    • Number Of Speeds
      5
  • DRIVE LINE
    add remove
    • Driveline Type
      Selectable 4X2 / 4X4
    • Number Of Driveline Modes
      2
    • Rear Solid Axle
      No
    • Driveline Brand
      On-Command™
    • Rear Unlocking Differential
      No
    • Limited Slip Differential Location
      Front
    • Differential Lock Location
      Front
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      64
    • Height (in)
      68.9
    • Wheelbase (in)
      90.5
    • Turning Radius (ft)
      19.7
    • Ground Clearance (in)
      13.2
    • Fuel Capacity (gal)
      9
    • Engine Displacement to Weight (cc)
      0.66
    • Wet Weight (lbs)
      1521
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double Wishbone
    • Front Adjustable Fork Pre-Load
      Yes
    • Front Stabilizer Bar
      Yes
    • Rear Suspension Type
      Independent Double Wishbone
    • Center Suspension
      Not Available
    • Front Travel (in)
      16.2
    • Rear Travel (in)
      17
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Number Rear Shock Absorbers
      2
    • Front Suspension Brand Name
      Fox® Podium
    • Rear Suspension Brand Name
      Fox® Podium
  • WHEELS & TIRES
    add remove
    • Front Tire Diameter (in)
      29
    • Rear Tire Diameter (in)
      29
    • Front Tire (Full Spec)
      Maxxis® Bighorn® 2.0 M917 29 X 9.00R-14
    • Rear Tire (Full Spec)
      Maxxis® Bighorn® 2.0 M918 29 X 11.00R-14
    • Spare Tire
      Not Available
    • Wheels Composition
      Aluminum
    • Tread Type
      All Terrain
    • Tube / Tubeless
      Tubeless
  • BRAKES
    add remove
    • Front Brake Type
      Dual Hydraulic Disc
    • Rear Brake Type
      Dual Hydraulic Disc
    • Anti-Lock Brakes
      Not Available
    • Front Brake Diameter (in)
      10
  • Color options
    add remove
    • Red
    • Red w/Aluminium Wheels
