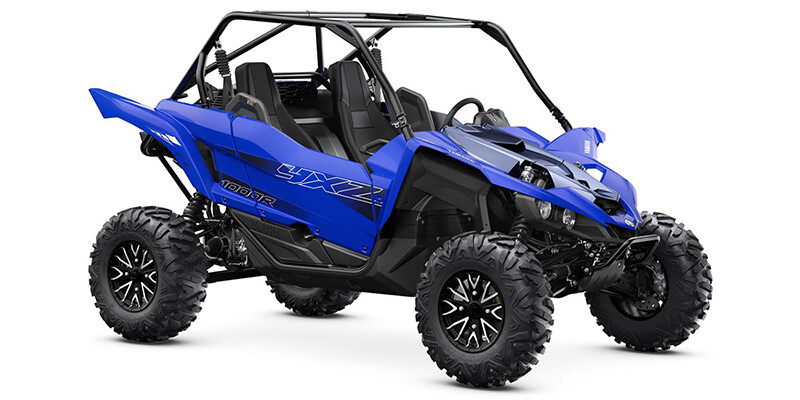

YXZ1000R

YXZ1000R

Request details

Description

Superior Pure Sport performance and driver‑controlled acceleration from this high‑revving, high‑output inline‑triple engine. Inject adrenaline into any adventure, from open deserts to tight wooded trails.

Specifications

  • ENGINE
    add remove
    • Engine Type
      998cc liquid-cooled DOHC inline three-cylinder; 12 valves
    • Cylinders
      3
    • Engine Stroke
      4-Stroke
    • Cooling
      Liquid
    • Valve Configuration
      DOHC
    • Bore (in)
      3.15
    • Stroke (in)
      2.61
    • Displacement (cc)
      998
    • Carburetion Brand
      Mikuni
    • Number Of Carburetors
      0
    • Carburetion Type
      Fuel Injected
    • Valves
      12
    • Valves Per Cylinder
      4
    • Bore x Stroke
      80.0mm x 66.2mm
    • Compression ratio
      11.3:1
    • Fuel Delivery
      Yamaha Fuel Injection (YFI); three 41mm Mikuni® throttle bodies
    • Transmission
      Manual foot clutch; 5-speed sequential with reverse
    • Final Drive
      On-Command; 3-way locking differential; selectable 2WD and 4WD with diff lock; shaft drive
  • TRANSMISSION
    add remove
    • Transmission Type
      Manual
    • Primary Drive (Rear Wheel)
      Shaft
    • Reverse
      Yes
    • Overdrive
      No
    • Hi / Low Range
      No
    • Primary Drive (Front Wheel)
      Shaft
    • Number Of Speeds
      5
  • DRIVE LINE
    add remove
    • Driveline Type
      Selectable 4X2 / 4X4
    • Number Of Driveline Modes
      2
    • Rear Solid Axle
      No
    • Driveline Brand
      On-Command™
    • Rear Unlocking Differential
      No
    • Limited Slip Differential Location
      Front
    • Differential Lock Location
      Front
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      64
    • Height (in)
      68.9
    • Wheelbase (in)
      90.5
    • Turning Radius (ft)
      19.7
    • Ground Clearance (in)
      13.2
    • Fuel Capacity (gal)
      9
    • Engine Displacement to Weight (cc)
      0.66
    • Wet Weight (lbs)
      1521
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double Wishbone
    • Front Adjustable Fork Pre-Load
      Yes
    • Front Stabilizer Bar
      Yes
    • Rear Suspension Type
      Independent Double Wishbone
    • Center Suspension
      Not Available
    • Front Travel (in)
      16.2
    • Rear Travel (in)
      17
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Number Rear Shock Absorbers
      2
    • Front Suspension Brand Name
      Fox® Podium
    • Rear Suspension Brand Name
      Fox® Podium
  • WHEELS & TIRES
    add remove
    • Front Tire Diameter (in)
      29
    • Rear Tire Diameter (in)
      29
    • Front Tire (Full Spec)
      Maxxis® Bighorn® 2.0 M917 29 X 9.00R-14
    • Rear Tire (Full Spec)
      Maxxis® Bighorn® 2.0 M918 29 X 11.00R-14
    • Spare Tire
      Not Available
    • Wheels Composition
      Aluminum
    • Tread Type
      All Terrain
    • Tube / Tubeless
      Tubeless
  • BRAKES
    add remove
    • Front Brake Type
      Dual Hydraulic Disc
    • Rear Brake Type
      Dual Hydraulic Disc
    • Anti-Lock Brakes
      Not Available
    • Front Brake Diameter (in)
      10
  • Color options
    add remove
    • Team Yamaha Blue
