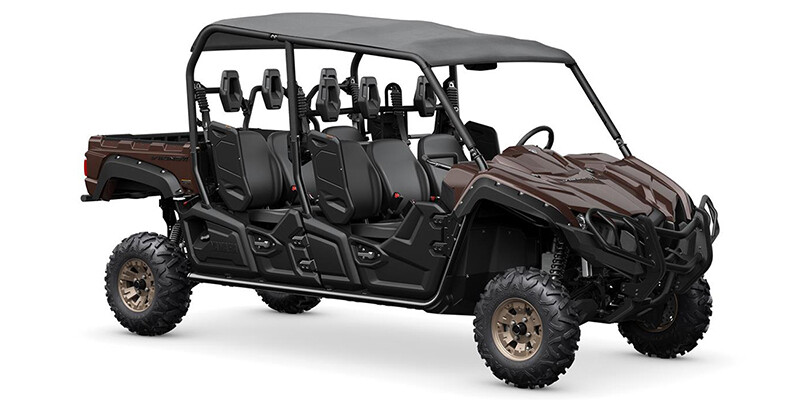

Viking VI EPS Ranch Edition

Viking VI EPS Ranch Edition

Request details

Specifications

  • ENGINE
    add remove
    • Engine Type
      686cc liquid-cooled SOHC 4-stroke; 4 valves
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Cooling
      Liquid
    • Valve Configuration
      SOHC
    • Bore (in)
      4.02
    • Stroke (in)
      3.31
    • Displacement (cc)
      686
    • Carburetion Type
      Fuel Injected
    • Valves
      4
    • Valves Per Cylinder
      4
    • Bore x Stroke
      102.0mm x 84.0mm
    • Compression ratio
      10.0:1
    • Fuel Delivery
      Yamaha Fuel Injection (YFI)
    • Ignition
      TCI: Transistor Controlled Ignition
    • Transmission
      Ultramatic V-belt with all-wheel engine braking; L, H, N, R
    • Final Drive
      On-Command; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
  • TRANSMISSION
    add remove
    • Transmission Type
      Continuously Variable (CVT)
    • Primary Drive (Rear Wheel)
      Shaft
    • Primary Drive (Engine / Transmission)
      Belt
    • Reverse
      Yes
    • Transmission Brand
      UltraMatic™
    • Overdrive
      No
    • Hi / Low Range
      Yes
    • Primary Drive (Front Wheel)
      Shaft
  • DRIVE LINE
    add remove
    • Driveline Type
      Selectable 4X2 / 4X4
    • Number Of Driveline Modes
      2
    • Rear Solid Axle
      No
    • Driveline Brand
      On-Command™
    • Rear Unlocking Differential
      No
    • Limited Slip Differential Location
      Front
    • Differential Lock Location
      Front
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      64
    • Height (in)
      76.6
    • Wheelbase (in)
      115.6
    • Turning Radius (ft)
      20.3
    • Ground Clearance (in)
      11.4
    • Towing Capacity (lbs)
      1500
    • Fuel Capacity (gal)
      9.7
    • Engine Displacement to Weight (cc)
      0.39
    • Wet Weight (lbs)
      1761
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double Wishbone
    • Front Adjustable Fork Pre-Load
      Yes
    • Rear Suspension Type
      Independent Double Wishbone
    • Center Suspension
      Not Available
    • Front Travel (in)
      8.1
    • Rear Travel (in)
      8.1
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Number Rear Shock Absorbers
      2
  • WHEELS & TIRES
    add remove
    • Front Tire Diameter (in)
      25
    • Rear Tire Diameter (in)
      25
    • Front Tire (Full Spec)
      25 X 8-12
    • Rear Tire (Full Spec)
      25 X 10-12
    • Spare Tire
      Not Available
    • Wheels Composition
      Aluminum
    • Tread Type
      All Terrain
    • Tube / Tubeless
      Tubeless
  • BRAKES
    add remove
    • Front Brake Type
      Dual Hydraulic Disc
    • Rear Brake Type
      Dual Hydraulic Disc
    • Anti-Lock Brakes
      Not Available
  • Color options
    add remove
    • Copper Metallic
