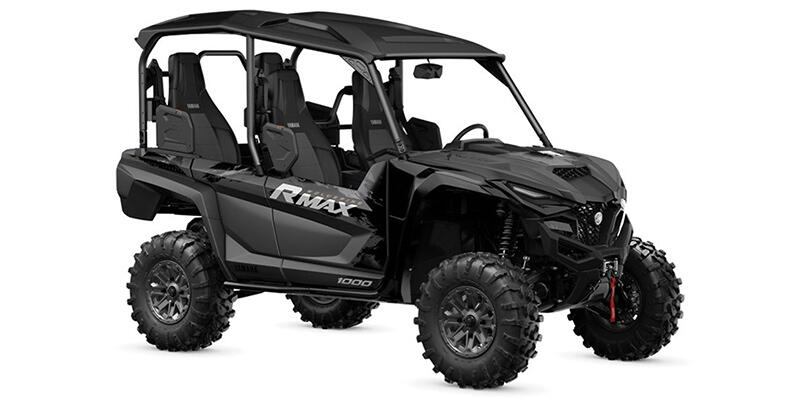

Wolverine RMAX4 Compact 1000 XT-R

Wolverine RMAX4 Compact 1000 XT-R

Request details

Description

Experience extreme adventure with maximum cabin comfort and confidence thanks to a factory-installed WARN® winch, stylish XT-R Edition paint, color-matched wheels and aggressive Maxxis® Carnage® tires.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Parallel Twin
    • Cylinders
      2
    • Engine Stroke
      4-Stroke
    • Cooling
      Liquid
    • Valve Configuration
      DOHC
    • Bore (in)
      3.66
    • Stroke (in)
      2.89
    • Displacement (cc)
      999
    • Carburetion Type
      Fuel Injected
    • Valves
      8
    • Valves Per Cylinder
      4
    • Speed Governor
      Yes
    • Compression ratio
      11.2:1
  • TRANSMISSION
    add remove
    • Transmission Type
      Continuously Variable (CVT)
    • Primary Drive (Rear Wheel)
      Shaft
    • Primary Drive (Engine / Transmission)
      Belt
    • Reverse
      Yes
    • Transmission Brand
      UltraMatic™
    • Overdrive
      No
    • Hi / Low Range
      Yes
    • Primary Drive (Front Wheel)
      Shaft
  • DRIVE LINE
    add remove
    • Driveline Type
      Selectable 4X2 / 4X4
    • Number Of Driveline Modes
      2
    • Rear Solid Axle
      No
    • Driveline Brand
      On-Command™
    • Rear Unlocking Differential
      No
    • Limited Slip Differential Location
      Front
    • Differential Lock Location
      Front
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      66
    • Height (in)
      83.1
    • Wheelbase (in)
      90.2
    • Ground Clearance (in)
      13.4
    • Towing Capacity (lbs)
      2000
    • Fuel Capacity (gal)
      9.2
    • Engine Displacement to Weight (cc)
      0.49
    • Wet Weight (lbs)
      2050
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double Wishbone
    • Front Adjustable Fork Pre-Load
      Yes
    • Front Stabilizer Bar
      Yes
    • Rear Suspension Type
      Independent Double Wishbone
    • Center Suspension
      Not Available
    • Front Travel (in)
      14.2
    • Rear Travel (in)
      13.3
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Number Rear Shock Absorbers
      2
    • Front Suspension Brand Name
      Fox®
    • Rear Suspension Brand Name
      Fox®
  • WHEELS & TIRES
    add remove
    • Front Tire Diameter (in)
      29
    • Rear Tire Diameter (in)
      29
    • Front Tire (Full Spec)
      Maxxis® Carnage 29 X 9 R-14
    • Rear Tire (Full Spec)
      Maxxis® Carnage 29 X 9 R-14
    • Spare Tire
      Not Available
    • Wheels Composition
      Aluminum
    • Tread Type
      All Terrain
    • Tube / Tubeless
      Tubeless
  • BRAKES
    add remove
    • Front Brake Type
      Dual Hydraulic Disc
    • Rear Brake Type
      Dual Hydraulic Disc
    • Anti-Lock Brakes
      Not Available
  • Color options
    add remove
    • Matte Grey / Metallic Black
