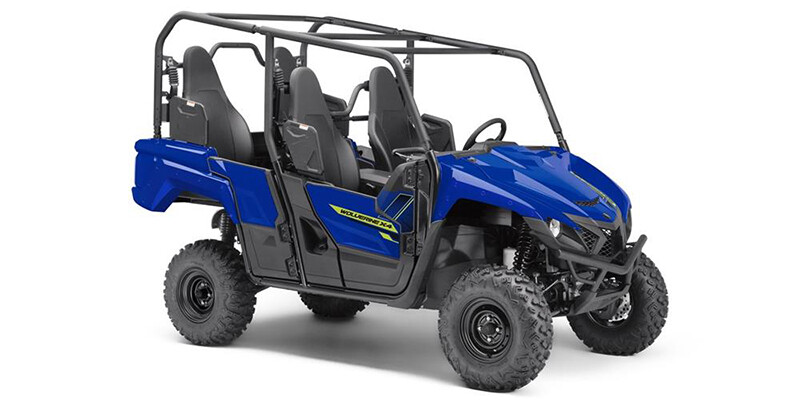

Wolverine X4

Wolverine X4

Adventure Times Four

Description

REALize your 4‑seat adventures in the Wolverine X4. Proven Off‑Road to take everyone and everything they might need anywhere.

TOP FEATURES

Real World Tech

Yamaha’s advantages are easily seen in the technology found in every Wolverine X4®: Yamaha’s driver-centric On-Command® 4WD, ultra-reliable Ultramatic® CVT, and industry-leading Electric Power Steering.

Advanced Suspension System

Plush, well-damped suspension perfectly balances comfort with chassis control and bump absorption. Advanced self-leveling rear shocks automatically adjust for changes in vehicle and passenger loads to ensure ideal chassis performance with every ride.

Potent 847cc Twin-Cylinder Powerplant

Featuring drive-by-wire throttle, a 270-degree crankshaft design and lightweight internals, the Wolverine X4 shares technology with Yamaha’s class-leading sportbikes, for thrilling performance on every ride with unmatched smoothness and refinement.

Room for Four

With high-back seats and plenty of legroom, the Wolverine X4 offers comfortable, secure seating for four full-sized adults. The second row is raised for excellent visibility, with comfortable handholds and three-point seatbelts for each seat.

Versatility Unequaled

The Wolverine X4 offers a balance of work-ready capability, refined comfort and trail-proven confidence that confirm Yamaha is the ultimate outdoor adventure partner.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Parallel Twin
    • Cylinders
      2
    • Engine Stroke
      4-Stroke
    • Cooling
      Liquid
    • Valve Configuration
      DOHC
    • Bore (in)
      3.23
    • Stroke (in)
      3.16
    • Displacement (cc)
      847
    • Carburetion Brand
      Mikuni
    • Carburetion Type
      Fuel Injected
    • Valves
      8
    • Valves Per Cylinder
      4
    • Speed Governor
      Yes
    • Bore x Stroke
      82.0mm x 80.2mm
    • Compression ratio
      10.5:1
    • Fuel Delivery
      Mikuni® fuel injection with YCC-T, dual 36mm throttle bodies
    • Transmission
      Ultramatic V-belt with all-wheel engine braking; L, H, N, R
    • Final Drive
      On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
  • TRANSMISSION
    add remove
    • Transmission Type
      Continuously Variable (CVT)
    • Primary Drive (Rear Wheel)
      Shaft
    • Primary Drive (Engine / Transmission)
      Belt
    • Reverse
      Yes
    • Transmission Brand
      UltraMatic™
    • Overdrive
      No
    • Hi / Low Range
      Yes
    • Primary Drive (Front Wheel)
      Shaft
  • DRIVE LINE
    add remove
    • Driveline Type
      Selectable 4X2 / 4X4
    • Number Of Driveline Modes
      2
    • Rear Solid Axle
      No
    • Driveline Brand
      On-Command™
    • Rear Unlocking Differential
      No
    • Limited Slip Differential Location
      Front
    • Differential Lock Location
      Front
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      61
    • Height (in)
      77.2
    • Wheelbase (in)
      83.7
    • Turning Radius (ft)
      15.8
    • Ground Clearance (in)
      10.7
    • Towing Capacity (lbs)
      2000
    • Fuel Capacity (gal)
      9.2
    • Engine Displacement to Weight (cc)
      0.51
    • Wet Weight (lbs)
      1663
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double Wishbone
    • Front Adjustable Fork Pre-Load
      Yes
    • Front Stabilizer Bar
      Yes
    • Rear Suspension Type
      Independent Double Wishbone
    • Center Suspension
      Not Available
    • Front Travel (in)
      8.7
    • Rear Travel (in)
      9.3
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Number Rear Shock Absorbers
      2
  • WHEELS & TIRES
    add remove
    • Front Tire Diameter (in)
      26
    • Rear Tire Diameter (in)
      26
    • Front Tire (Full Spec)
      Maxxis® AT26 X 8-12 MU75
    • Rear Tire (Full Spec)
      Maxxis® AT26 X 10-12 MU76
    • Spare Tire
      Not Available
    • Wheels Composition
      Steel
    • Tread Type
      All Terrain
    • Tube / Tubeless
      Tubeless
  • BRAKES
    add remove
    • Front Brake Type
      Dual Hydraulic Disc
    • Rear Brake Type
      Dual Hydraulic Disc
    • Anti-Lock Brakes
      Not Available
  • Color options
    add remove
    • Yamaha Blue
    • REALTREE® Edge Camouflage
    • Alpine White w/Aluminum Wheels
    • Alpine White
    • Realtree Edge w/Aluminum Wheels
