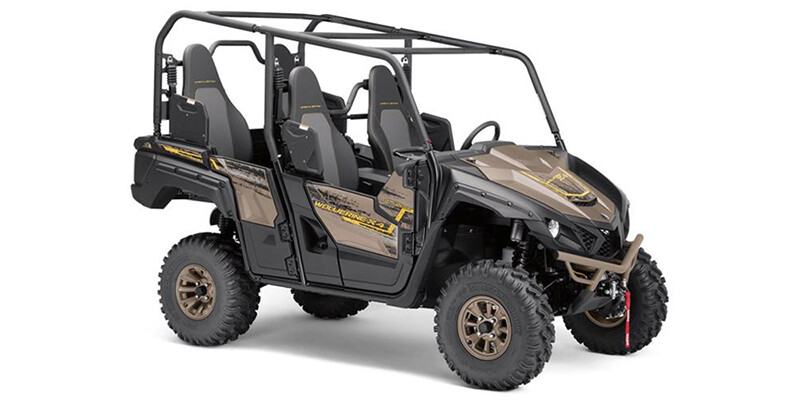

Wolverine X4 XT-R

Wolverine X4 XT-R

Unmatched Adventure for Four

Description

This XT‑R Edition is ready for extreme adventure with a factory installed Warn Winch, Special Edition paint, color matched wheels, and aggressive GBC Dirt Commander tires.

TOP FEATURES

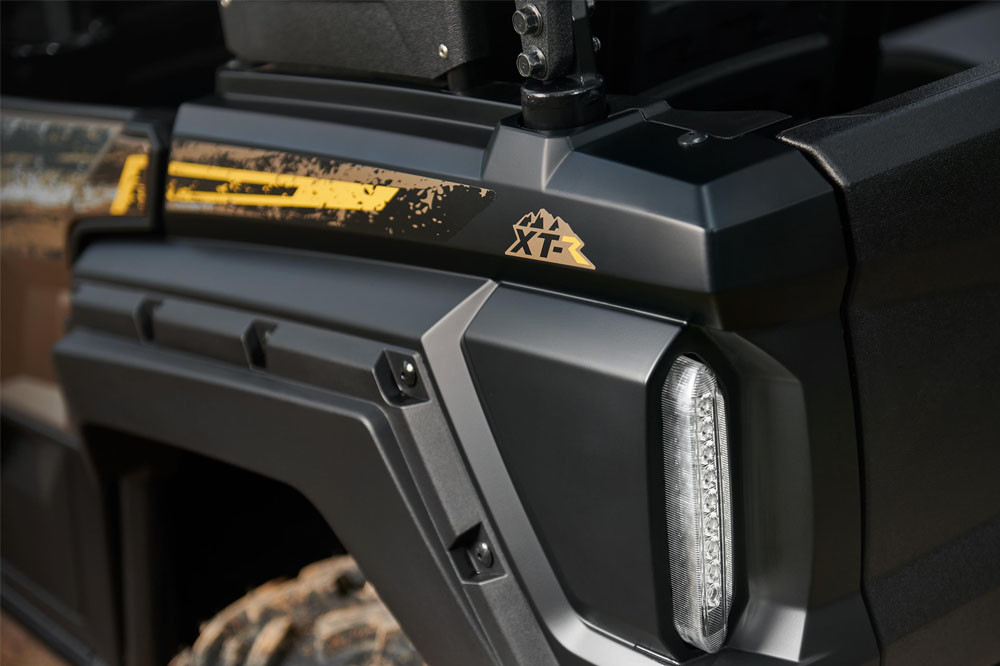

All-New XT-R™ Package

For 2020, the new Wolverine X4® XT-R leads the Wolverine range with beefy new radial tires, heavy-duty WARN® winch, advanced suspension, and a stylish paint and graphics package.

Real World Tech

Yamaha’s advantages are easily seen in the technology found in every Wolverine X4 XT-R: Yamaha’s driver-centric On-Command® 4WD, ultra-reliable Ultramatic® CVT, and industry-leading Electric Power Steering.

Advanced Suspension System

Plush, well-damped suspension perfectly balances comfort with chassis control and bump absorption. Advanced self-leveling rear shocks automatically adjust for changes in vehicle and passenger loads to ensure ideal chassis performance with every ride.

Potent 847cc Twin-Cylinder Powerplant

Featuring drive-by-wire throttle, a 270-degree crankshaft design and lightweight internals, the Wolverine X4 XT-R shares technology with Yamaha’s class-leading sportbikes, for thrilling performance on every ride with unmatched smoothness and refinement. Room for Four With high-back seats and plenty of legroom, the Wolverine X4 XT-R offers comfortable, secure seating for four full-sized adults. The second row is raised for excellent visibility, with comfortable handholds and three-point seatbelts for each seat.

Versatility Unequaled

The Wolverine X4 XT-R offers a balance of work-ready capability, refined comfort and trail-proven confidence that confirm Yamaha is the ultimate outdoor adventure partner.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Parallel Twin
    • Cylinders
      2
    • Engine Stroke
      4-Stroke
    • Cooling
      Liquid
    • Valve Configuration
      DOHC
    • Bore (in)
      3.23
    • Stroke (in)
      3.16
    • Displacement (cc)
      847
    • Carburetion Brand
      Mikuni
    • Carburetion Type
      Fuel Injected
    • Valves
      8
    • Valves Per Cylinder
      4
    • Speed Governor
      Yes
    • Bore x Stroke
      82.0mm x 80.2mm
    • Compression ratio
      10.5:1
    • Fuel Delivery
      Mikuni® fuel injection with YCC-T, dual 36mm throttle bodies
    • Transmission
      Ultramatic V-belt with all-wheel engine braking; L, H, N, R
    • Final Drive
      On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
  • TRANSMISSION
    add remove
    • Transmission Type
      Continuously Variable (CVT)
    • Primary Drive (Rear Wheel)
      Shaft
    • Primary Drive (Engine / Transmission)
      Belt
    • Reverse
      Yes
    • Transmission Brand
      UltraMatic™
    • Overdrive
      No
    • Hi / Low Range
      Yes
    • Primary Drive (Front Wheel)
      Shaft
  • DRIVE LINE
    add remove
    • Driveline Type
      Selectable 4X2 / 4X4
    • Number Of Driveline Modes
      2
    • Rear Solid Axle
      No
    • Driveline Brand
      On-Command™
    • Rear Unlocking Differential
      No
    • Limited Slip Differential Location
      Front
    • Differential Lock Location
      Front
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      61
    • Height (in)
      77.7
    • Wheelbase (in)
      83.7
    • Turning Radius (ft)
      15.8
    • Ground Clearance (in)
      11.3
    • Towing Capacity (lbs)
      2000
    • Fuel Capacity (gal)
      9.2
    • Engine Displacement to Weight (cc)
      0.49
    • Wet Weight (lbs)
      1739
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double Wishbone
    • Front Adjustable Fork Pre-Load
      Yes
    • Front Stabilizer Bar
      Yes
    • Rear Suspension Type
      Independent Double Wishbone
    • Center Suspension
      Not Available
    • Front Travel (in)
      8.7
    • Rear Travel (in)
      9.3
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Number Rear Shock Absorbers
      2
  • WHEELS & TIRES
    add remove
    • Front Tire Diameter (in)
      27
    • Rear Tire Diameter (in)
      27
    • Front Tire (Full Spec)
      AT27 X 9R-12 GBC® Dirt Commander®
    • Rear Tire (Full Spec)
      AT27 X 11R-12 GBC® Dirt Commander®
    • Spare Tire
      Not Available
    • Wheels Composition
      Aluminum
    • Tread Type
      All Terrain
    • Tube / Tubeless
      Tubeless
  • BRAKES
    add remove
    • Front Brake Type
      Dual Hydraulic Disc
    • Rear Brake Type
      Dual Hydraulic Disc
    • Anti-Lock Brakes
      Not Available
  • Color options
    add remove
    • Titanium Bronze/Tactical Black
