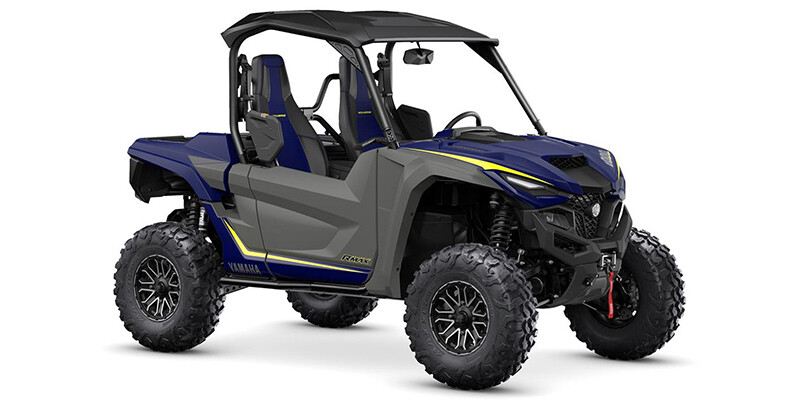

Wolverine RMAX2 1000 Limited Edition

Wolverine RMAX2 1000 Limited Edition

Description

Max power and capability meets ultimate style and comfort with best‑in‑class power delivery, FOX iQS suspension technology, fully‑integrated stereo system and more cabin comfort touch‑points than any other vehicle in its class.

Specifications

Engine Type 999cc liquid cooled, 4-stroke, DOHC, 4-valve
Bore x Stroke 93.0mm×73.5mm
Compression ratio 11.2:1
Fuel Delivery Yamaha Fuel Injection (YFI); dual 48mm throttle bodies
Transmission Ultramatic V-belt with all-wheel engine braking; L, H, N, R
Final Drive On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
Suspension / Front Independent double wishbone with anti-sway bar, FOX® iQS piggyback shocks; 14.2-in travel
Suspension / Rear Independent double wishbone, FOX® iQS piggyback shocks; 16.9-in travel
Brakes / Front Dual hydraulic disc
Brakes / Rear Dual hydraulic disc
Tires / Front 30 x 10.00R-14 Maxxis® Carnivore
Tires / Rear 30 x 10.00R-14 Maxxis® Carnivore
L x W x H 119.3 in x 66.1 in x 77.8 in
Stance Width 64 in* (width measured laterally between the outermost wheel rim on each side of the vehicle)
Wheelbase 86.7 in
Turning Radius 236 in
Maximum Ground Clearance 13.8 in
Fuel Capacity 9.2 gal
Wet Weight*** 1,885 lb
Bed Capacity 600 lb
Towing Capacity 2,000 lb
Titan/Midnight Blue
