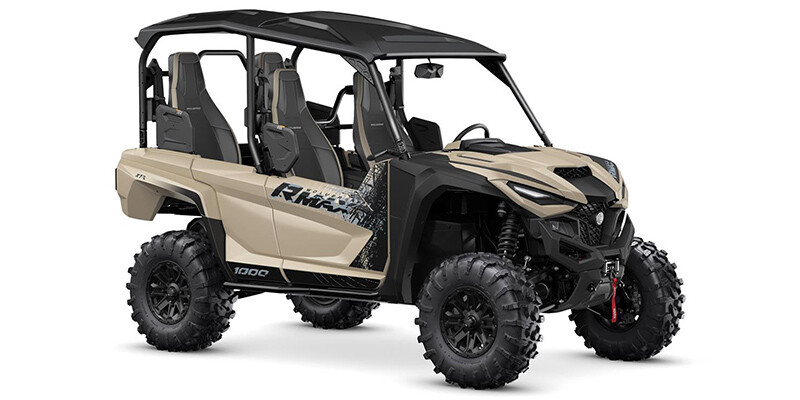

Wolverine RMAX4 1000 XT-R

Wolverine RMAX4 1000 XT-R

Request details

Description

Experience extreme adventure with maximum cabin comfort and confidence thanks to a factory‑installed WARN® winch, stylish XT‑R Edition paint, color‑matched wheels and aggressive tread Maxxis® Carnage® tires.

Specifications

Engine Type 999cc liquid cooled, 4-stroke, DOHC, 4-valve
Bore x Stroke 93.0mm×73.5mm
Compression ratio 11.2:1
Fuel Delivery Yamaha Fuel Injection (YFI); dual 48mm throttle bodies
Transmission Ultramatic V-belt with all-wheel engine braking; L, H, N, R
Final Drive On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
Suspension / Front Independent double wishbone with anti-sway bar, FOX® QS3 piggyback shocks; 14.2-in travel
Suspension / Rear Independent double wishbone with anti-sway bar, FOX® QS3 piggyback shocks; 13.3-in travel
Brakes / Front Dual hydraulic disc
Brakes / Rear Dual hydraulic disc
Tires / Front 29 x 9.00R-14 Maxxis® Carnage
Tires / Rear 29 x 11.00R-14 Maxxis® Carnage
L x W x H 128.1 in x 66.0 in x 83.1 in
Stance Width 64 in* (width measured laterally between the outermost wheel rim on each side of the vehicle)
Wheelbase 90.2 in
Turning Radius 236 in
Maximum Ground Clearance 13.4 in
Fuel Capacity 9.2 gal
Wet Weight*** 2,050 lb
Bed Capacity 600 lb
Towing Capacity 2,000 lb
Desert Tan/Tactical Black
