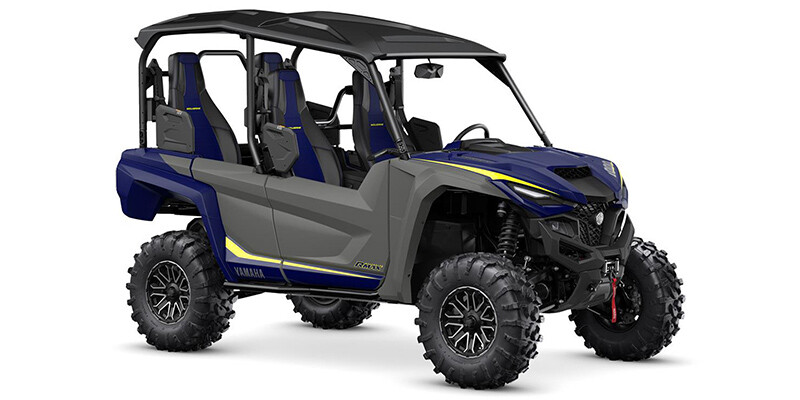

Wolverine RMAX4 1000 Limited Edition

Wolverine RMAX4 1000 Limited Edition

Request details

Description

Feature‑rich and power‑packed for max comfort and versatility with best‑in‑class power delivery, FOX iQS suspension technology, fully integrated stereo system and more cabin comfort touch‑points than any other vehicle in its class.

Specifications

  • ENGINE
    add remove
    • Engine Type
      999cc liquid cooled, 4-stroke, DOHC, 4-valve
    • Cylinders
      2
    • Engine Stroke
      4-Stroke
    • Cooling
      Liquid
    • Valve Configuration
      DOHC
    • Bore (in)
      3.66
    • Stroke (in)
      2.89
    • Displacement (cc)
      999
    • Carburetion Type
      Fuel Injected
    • Valves
      8
    • Valves Per Cylinder
      4
    • Speed Governor
      Yes
    • Bore x Stroke
      93.0mm×73.5mm
    • Compression ratio
      11.2:1
    • Fuel Delivery
      Yamaha Fuel Injection (YFI); dual 48mm throttle bodies
    • Transmission
      Ultramatic V-belt with all-wheel engine braking; L, H, N, R
    • Final Drive
      On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
  • TRANSMISSION
    add remove
    • Transmission Type
      Continuously Variable (CVT)
    • Primary Drive (Rear Wheel)
      Shaft
    • Primary Drive (Engine / Transmission)
      Belt
    • Reverse
      Yes
    • Transmission Brand
      UltraMatic™
    • Overdrive
      No
    • Hi / Low Range
      Yes
    • Primary Drive (Front Wheel)
      Shaft
  • DRIVE LINE
    add remove
    • Driveline Type
      Selectable 4X2 / 4X4
    • Number Of Driveline Modes
      2
    • Rear Solid Axle
      No
    • Driveline Brand
      On-Command™
    • Rear Unlocking Differential
      No
    • Limited Slip Differential Location
      Front
    • Differential Lock Location
      Front
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      66
    • Height (in)
      83.1
    • Wheelbase (in)
      90.2
    • Turning Radius (ft)
      19.7
    • Ground Clearance (in)
      13.4
    • Towing Capacity (lbs)
      2000
    • Fuel Capacity (gal)
      9.2
    • Engine Displacement to Weight (cc)
      0.49
    • Wet Weight (lbs)
      2059
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double Wishbone
    • Front Adjustable Fork Pre-Load
      Yes
    • Front Stabilizer Bar
      Yes
    • Rear Suspension Type
      Independent Double Wishbone
    • Center Suspension
      Not Available
    • Front Travel (in)
      14.2
    • Rear Travel (in)
      13.3
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Number Rear Shock Absorbers
      2
    • Front Suspension Brand Name
      Fox®
    • Rear Suspension Brand Name
      Fox®
  • WHEELS & TIRES
    add remove
    • Front Tire Diameter (in)
      29
    • Rear Tire Diameter (in)
      29
    • Front Tire (Full Spec)
      Maxxis® Carnage™ 29 X 9.00R-14
    • Rear Tire (Full Spec)
      Maxxis® Carnage™ 29 X 11.00R-14
    • Spare Tire
      Not Available
    • Wheels Composition
      Aluminum
    • Tread Type
      All Terrain
    • Tube / Tubeless
      Tubeless
  • BRAKES
    add remove
    • Front Brake Type
      Dual Hydraulic Disc
    • Rear Brake Type
      Dual Hydraulic Disc
    • Anti-Lock Brakes
      Not Available
    • Front Brake Diameter (in)
      10
    • Rear Brake Diameter (in)
      9.6
  • Color options
    add remove
    • Titan/Midnight Blue
