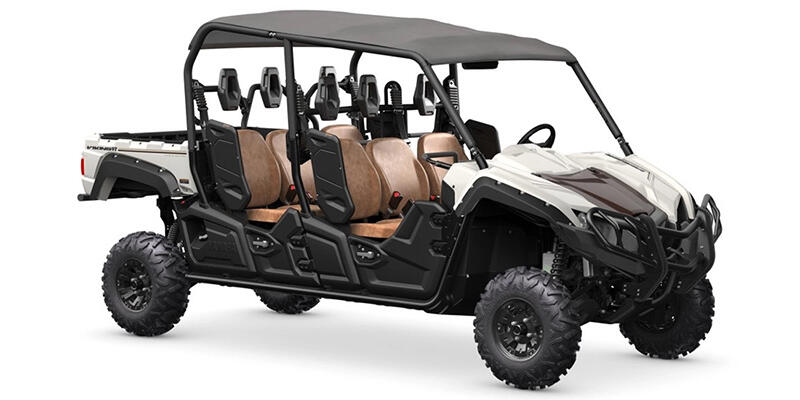

Viking VI EPS Ranch Edition

Viking VI EPS Ranch Edition

Request details

Description

Bold Ranch Edition styling for the whole crew handles tough chores and tougher terrain with Proven Off‑Road capability, cabin comfort, dumping cargo bed and more.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Cooling
      Liquid
    • Valve Configuration
      SOHC
    • Bore (in)
      4.02
    • Stroke (in)
      3.31
    • Displacement (cc)
      686
    • Carburetion Type
      Fuel Injected
    • Valves
      4
    • Valves Per Cylinder
      4
    • Compression ratio
      10.0:1
  • TRANSMISSION
    add remove
    • Transmission Type
      Continuously Variable (CVT)
    • Primary Drive (Rear Wheel)
      Shaft
    • Primary Drive (Engine / Transmission)
      Belt
    • Reverse
      Yes
    • Transmission Brand
      UltraMatic™
    • Overdrive
      No
    • Hi / Low Range
      Yes
    • Primary Drive (Front Wheel)
      Shaft
  • DRIVE LINE
    add remove
    • Driveline Type
      Selectable 4X2 / 4X4
    • Number Of Driveline Modes
      2
    • Rear Solid Axle
      No
    • Driveline Brand
      On-Command™
    • Rear Unlocking Differential
      No
    • Limited Slip Differential Location
      Front
    • Differential Lock Location
      Front
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      64
    • Height (in)
      76.6
    • Wheelbase (in)
      115.6
    • Turning Radius (ft)
      20.3
    • Ground Clearance (in)
      11.4
    • Towing Capacity (lbs)
      1500
    • Fuel Capacity (gal)
      9.7
    • Engine Displacement to Weight (cc)
      0.39
    • Wet Weight (lbs)
      1761
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent Double Wishbone
    • Front Adjustable Fork Pre-Load
      Yes
    • Rear Suspension Type
      Independent Double Wishbone
    • Center Suspension
      Not Available
    • Front Travel (in)
      8.1
    • Rear Travel (in)
      8.1
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Number Rear Shock Absorbers
      2
  • WHEELS & TIRES
    add remove
    • Front Tire Diameter (in)
      25
    • Rear Tire Diameter (in)
      25
    • Front Tire (Full Spec)
      AT 25 X 8-12
    • Rear Tire (Full Spec)
      AT 25 X 10-12
    • Spare Tire
      Not Available
    • Wheels Composition
      Aluminum
    • Tread Type
      All Terrain
    • Tube / Tubeless
      Tubeless
  • BRAKES
    add remove
    • Front Brake Type
      Dual Hydraulic Disc
    • Rear Brake Type
      Dual Hydraulic Disc
    • Anti-Lock Brakes
      Not Available
  • Color options
    add remove
    • Winter White
